highly durability finned bellows cover black /silver colour with traverse rate 120M/min for protect red hot

highly durability finned bellows cover black /silver colour with traverse rate 120M/min for protect red hot

    • highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot
    • highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot
    • highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot
    • highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot
  • highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot

    Product Details:

    Place of Origin: CHINA
    Brand Name: SJ
    Certification: N/A
    Model Number: SJ19018805

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: depends
    Packaging Details: plastic bag +carton box
    Delivery Time: 5-10days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100pcs/month
    Contact Now
    Detailed Product Description
    Material 1: Stainless Steel Material: Fabric Cloth
    Colour: Black /silver Size: Any Size

    product description :

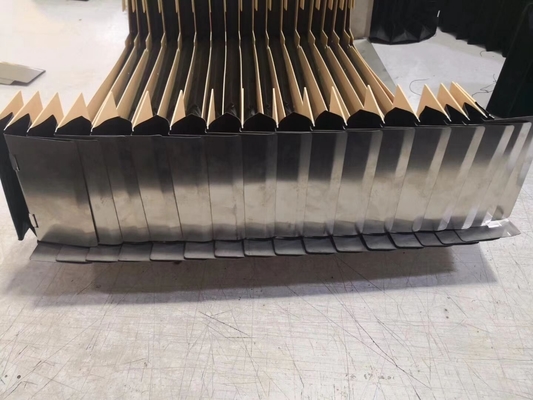

    highly durability finned bellows cover black and silver for traverse rate 120M/min



    Allows for traverse rate 120 M/min

    A: High hardness stainless steel

    B: Bellows cover

    C: stiffener

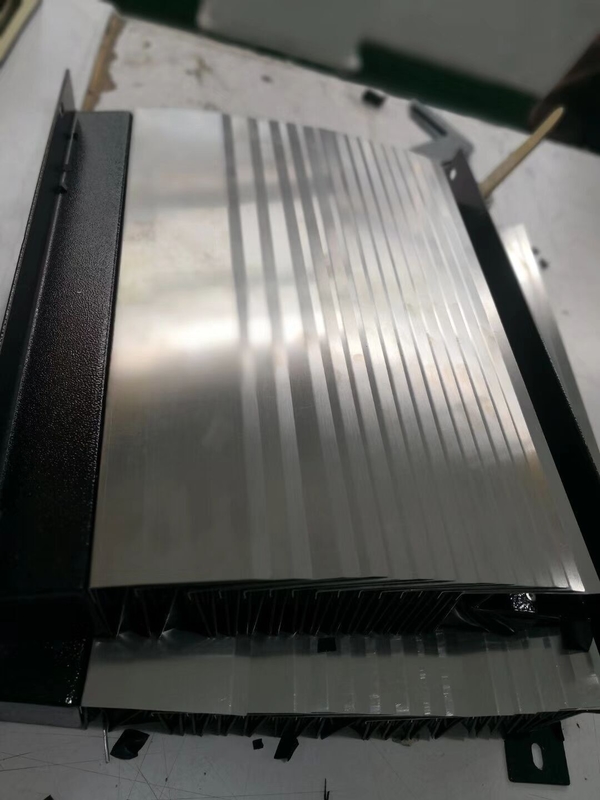

    This finned bellows cover are suitable for large amounts of high-temperature chips ,ultra large travel and insufficient space

    for mounting metal sheet guard .

    applicable machines include horizontal machining centers , travelling column machining centers and various CNC machining

    centers . the corrugation top is equipped with stainless steel or aluminum alloy sheet for surface protection to prevent

    high temperature from damaging the cover while ensuring superior protection effect .



    highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot



    Do you need vertically mounted bellows ?without lamella overhang ?

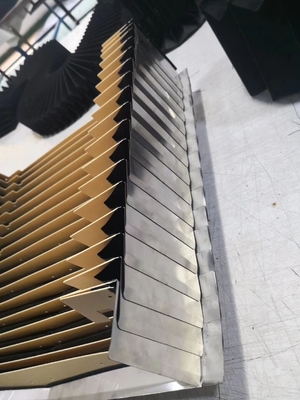

    The bellows with hinged lamellas are the perfect solution for you .

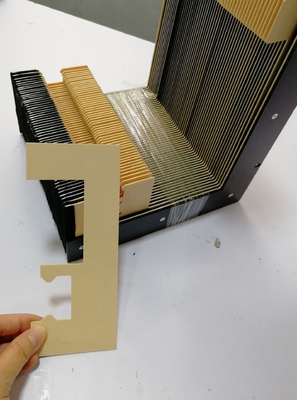

    Each lamella is flexibly fixed to the PVC frame . therefore , the lamellas can lie down flat on the machine enclosure

    at the bottom .

    Combine the rigidity and durability of steel way covers with the compression and flexibility of fabric bellows .

    steel cladded is added to fabric bellow when : debris is red hot/swarf is razor sharp /

    space is limited /applications are vertical .

    Fixed or hinged (hinged design has overhang- good for vertical applications )





    Features &Benefits :



    Added protection against hot chip loads and weld spatter resistance prolongs operation life of bellows .



    Smaller footprint and great extended -to-retracted ratio compared to telescoping steel way covers .



    Applications typical :



    Vertical , horizontal or cross-rail protection for machine way protection .



    Fixed or hinged ,stainless steel lamellas can be added to protect the bellows

    against hot , sharp-edged swarf ,or mechanical strain .



    highly durability   finned bellows cover black /silver colour  with traverse rate 120M/min for protect red hot





    L max  max .extending length
    L min  min. compression length
    extending length of protective sheet metal/max .extending length-min compression
    ST  Length = total working stroke
    H Height of corrugation
    W width of protective curtain
    L accumulated thickness of protective metal sheet



    High speed traveling /Resist high temperaure chips /light weight



    Bellows cover in combination with high hardness stainless steel make it suitable for metal cutting chips .

    outstanding forming technology and structure design enable the series of cover to be ideal for protecting slide ways with extra large traveling .

    low noise and long service life . available to equip with sliding and synchronized mechanism for rapid traverse .

    customized product .
