HUANGU electronic tech co.,ltd specialized on precision adapter design and produce , OEM project for auto repair tools connectors .
|Place of Origin:||CHINA|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||plastic bag +carton box|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Material 1:||Stainless Steel||Material:||Fabric Cloth|
|Colour:||Black /silver||Size:||Any Size|
product description :

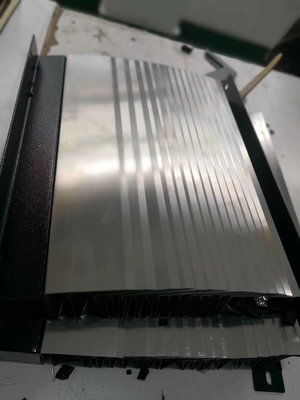

precisely designed laminar bellow /gordillo bellows for protect against hot chip loads
Allows for traverse rate 120 M/min
A: High hardness stainless steel
B: Bellows cover
Do you need vertically mounted bellows ?without lamella overhang ?

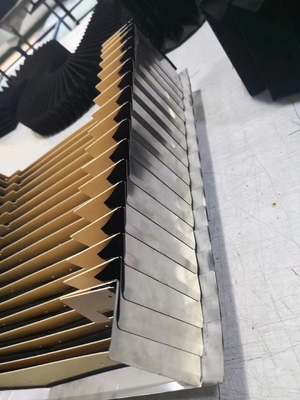

The bellows with hinged lamellas are the perfect solution for you .

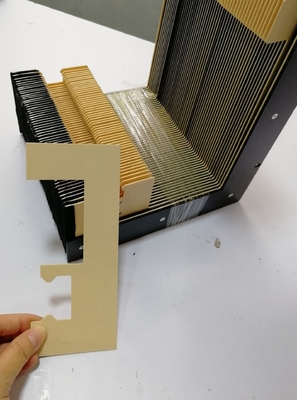

Each lamella is flexibly fixed to the PVC frame . therefore , the lamellas can lie down flat on the machine enclosure
at the bottom .
Combine the rigidity and durability of steel way covers with the compression and flexibility of fabric bellows .
steel cladded is added to fabric bellow when : debris is red hot/swarf is razor sharp /
space is limited /applications are vertical .
Fixed or hinged (hinged design has overhang- good for vertical applications )

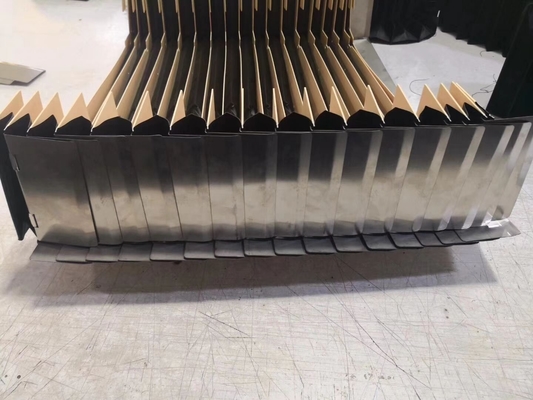

Laminar bellow is a bellows way cover (sewn-folded or thermic-weld construction )
made with stainless steel plates covering each convolution .
The stainless steel plates shield the bellows from damaging hot chips and hot sparks ,
which could quickly damage a conventional bellows .A gordillo way cover is a convenient option where
there is not enough space for a telescopic way cover .
Features &Benefits :
Added protection against hot chip loads and weld spatter resistance prolongs operation life of bellows .
Smaller footprint and great extended -to-retracted ratio compared to telescoping steel way covers .
Applications typical :
Vertical , horizontal or cross-rail protection for machine way protection .
Fixed or hinged ,stainless steel lamellas can be added to protect the bellows
against hot , sharp-edged swarf ,or mechanical strain .
|fold height (e)||24|
|extensions per fold flat (AZ)||27|
|extensions per fold folded (az)||33|
