high quality bellow cover for CNC router /CNC celero /CNC digital express /CNC Graph-x-cutter

high quality covers bellows , multi-axis milling machine with gortite way cover bellows designed long travel

high quality heat- sealed machine cover bellows , way covers for linear rails made with fabric +pvc

product name :  machine cover bellows

production description :

1, usage environment :

heat-sealed bellows are a popular choice for covering machine ways and linear rails .

this style of bellows is applied in light to medium-duty environments , where small particles , light abrasives , occasional oil, chips or liquid are present .

for added protection , a heat-sealed bellows can eb turned intor a Gordillo way cover, accomplished by attaching protective stainless steel plated to the top of each convolution .

2, Feature & Benefits :

no stitch holes , seams or breaks .

cover retains shape throughout travel

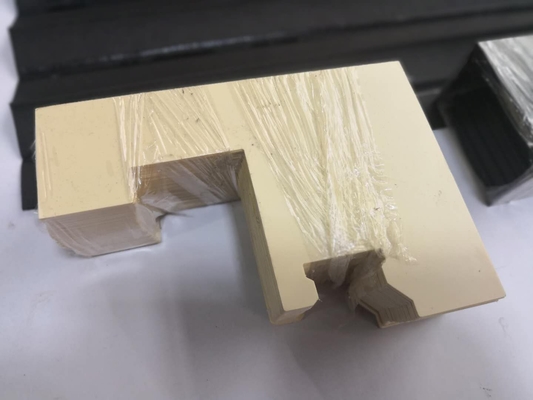

stiffener profile can be made to match any way or rail geometry

attractive , clean , uniform appearance

excellent protection for linear bearings and other precision equipment .

3, heat- sealed way covers are manufactured from a single sheet of thermoplastic-coated fabric

which is pleated , and then thermic welded to a PVC stiffener at every fold .

heat-sealed bellow are free from stitch holes , seams or breaks,

heat-sealed bellows are available in any flat sided (non-circular) form,

e.g. rectangular , flat/strip-type, or way cover .

it can be fabricated with metal plated attached to each convolution for added protection against spartks and hot chips ,

4. options /accessories :

mounting plates

hooks & loop fastener

tie strips

stainless steel plates attached to each convolution .
