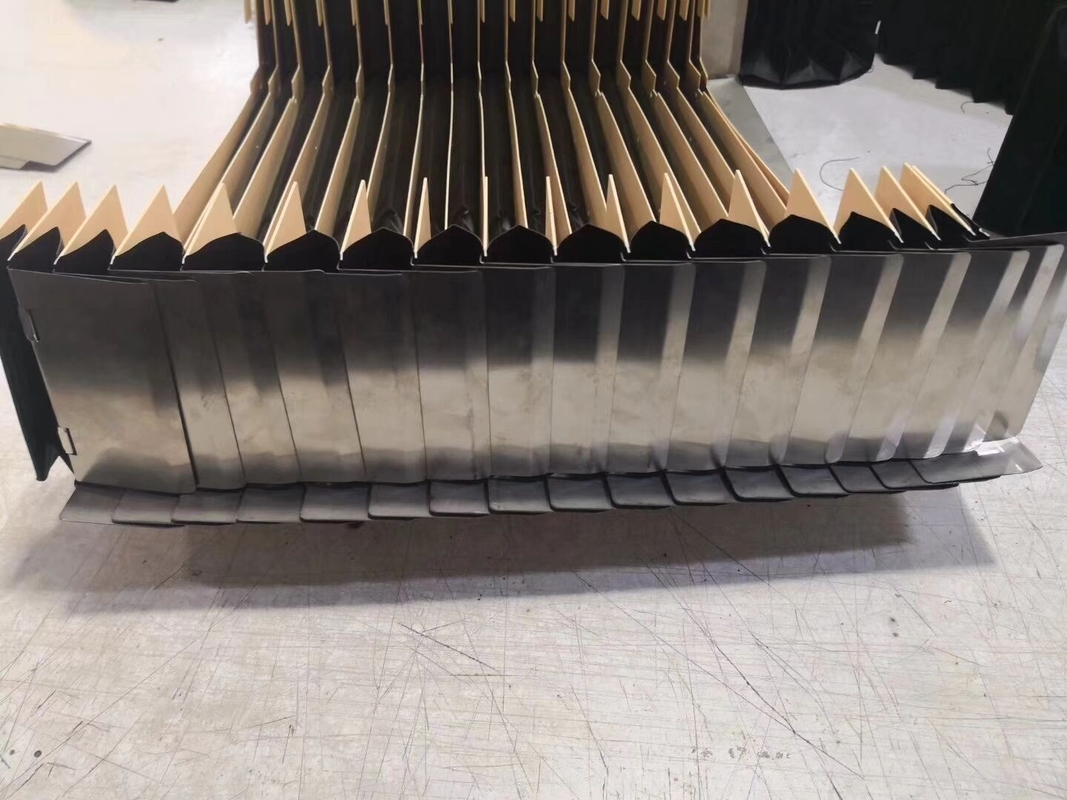

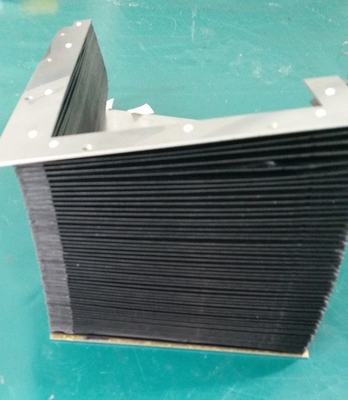

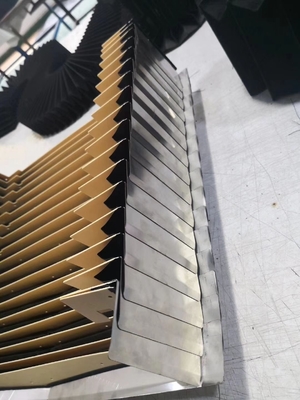

highly durability laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf

highly durability laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf

    • highly durability  laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf
    • highly durability  laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf
    • highly durability  laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf
  • highly durability  laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf

    Product Details:

    Place of Origin: CHINA
    Brand Name: SJ
    Certification: N/A
    Model Number: SJ19018802

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: depends
    Packaging Details: plastic bag +carton box
    Delivery Time: 5-10days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100pcs/month
    Contact Now
    Detailed Product Description
    Material 1: Stainless Steel Material: Fabric Cloth
    Colour: Black /silver Size: Any Size

    product description :

    precisely designed laminar bellow /gordillo bellows for protect against hot chip loads



    Do you need vertically mounted bellows ?without lamella overhang ?

    The bellows with hinged lamellas are the perfect solution for you .

    Each lamella is flexibly fixed to the PVC frame . therefore , the lamellas can lie down flat on the machine enclosure

    at the bottom .



    Laminar bellow is a bellows way cover (sewn-folded or thermic-weld construction )

    made with stainless steel plates covering each convolution .

    The stainless steel plates shield the bellows from damaging hot chips and hot sparks ,

    which could quickly damage a conventional bellows .A gordillo way cover is a convenient option where

    there is not enough space for a telescopic way cover .



    Features &Benefits :



    Added protection against hot chip loads and weld spatter resistance prolongs operation life of bellows .



    Smaller footprint and great extended -to-retracted ratio compared to telescoping steel way covers .



    Applications typical :



    Vertical , horizontal or cross-rail protection for machine way protection .



    Fixed or hinged ,stainless steel lamellas can be added to protect the bellows

    against hot , sharp-edged swarf ,or mechanical strain .



    highly durability  laminar bellow / hinged steel lamellas black and silver for agaist sharp edged swarf



    fold height (e) 24
    extensions per fold flat (AZ) 27
    extensions per fold folded (az) 33
