SJ machine tool protection co.,ltd is a chinese manufacturer of OEM /ODM machine protective cover ,bellows ,industrial parts etc !
|Place of Origin:||CHINA|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||plastic bag +carton box|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Material 1:||Stainless Steel||Material:||Fabric Cloth|
|Colour:||Black /silver||Size:||Any Size|
product description :

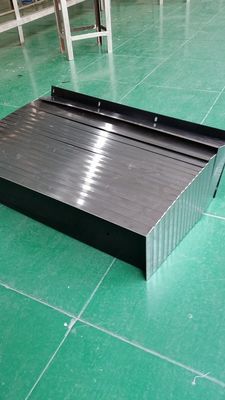

precisely designed laminar bellow /gordillo bellows for protect against hot chip loads
Laminar bellow is a bellows way cover (sewn-folded or thermic-weld construction )
made with stainless steel plates covering each convolution .
The stainless steel plates shield the bellows from damaging hot chips and hot sparks ,
which could quickly damage a conventional bellows .A gordillo way cover is a convenient option where
there is not enough space for a telescopic way cover .
Features &Benefits :
Added protection against hot chip loads and weld spatter resistance prolongs operation life of bellows .
Smaller footprint and great extended -to-retracted ratio compared to telescoping steel way covers .
Applications typical :
Vertical , horizontal or cross-rail protection for machine way protection .
Fixed or hinged ,stainless steel lamellas can be added to protect the bellows
against hot , sharp-edged swarf ,or mechanical strain .
|fold height (e)||24|
|extensions per fold flat (AZ)||27|
|extensions per fold folded (az)||33|
